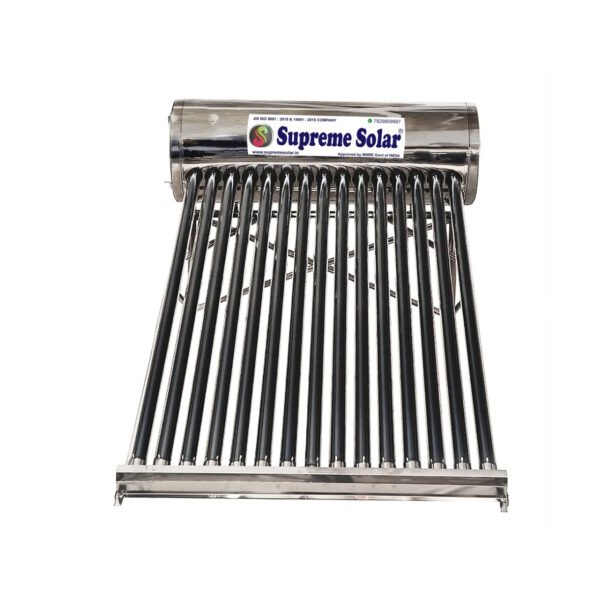

Supreme Solar 200 LPD Full Steel
price with 20 Year’s Guarantee Tank
The Supreme Solar 200 Ltr Complete Steel water heater features an inner tank lined with glass, coated with an anti-corrosion material. This specific coating safeguards the tank against the corrosive effects of high salt levels and eliminates any unpleasant water odors. The complete steel models have an outer tank made of steel and a full steel framework. This makes it an ideal choice for coastal regions where the climate is prone to causing damage to the structure.
download brochure here

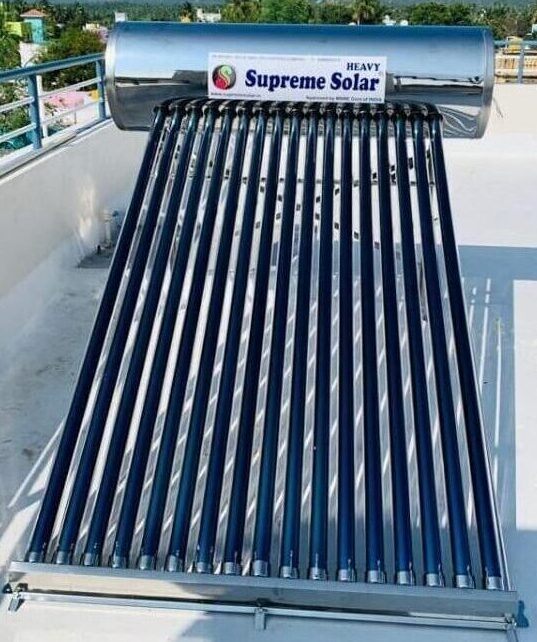

Supreme Solar 200 LPD Full Steel Glasslined Solar tank.
For the supreme solar 200-litre capacity to work perfectly fine with our High-Quality Stainless Steel tank. The overhead tank height is to be at least 5 ft high from the floor level. This will ensure the continuous supply of water to our solar tank to function properly. Because stainless steel works excellently on normal hard water areas. we also recommend Glasslined solar if the water hardness is too high, as the hard water even will kill the stainless steel materials.
Supreme Solar 200 LPD Full Steel price
Supreme Solar 200 Ltr Full Steel Budget-friendly solar water heater with 200 ltr capacity is the most used and sold product in India. This product is well suited for a family of 4 to 5 and serves up to 3 bathrooms.
How many Ltrs solar water heater to buy?
How many litres of solar water heater is required?
http://supremesolar.online/why-glass-lined-coated-solar-tank-is-better/
Supreme Solar 200 GL H+
Supreme Solar 220 Ltr Price
The most important characteristic of supreme solar 200 ltr from an industrial perspective, is its resistance to corrosion. Mild steel is used in almost every industry and a huge array of products; porcelain enamel is a very economic way of protecting this, and other chemically vulnerable materials, from corrosion. It can also produce very smooth, glossy finishes in a wide array of colours; these colours will not fade on exposure to UV light, as the paint will. Being a fired ceramic, porcelain enamel is also highly heat-resistant; this allows it to be used in high-temperature applications where an organic anti-corrosion coating or galvanization may be impractical or even dangerous (see Metal fume fever).
Porcelain enamel also sees less frequent employment of some of its other properties; examples are its abrasion resistance, where it may perform better than many metals; its resistance to organic solvents, where it is entirely impervious; its resistance to thermal shock, where it can resist rapid cooling from temperatures 500°C and higher; and its longevity.
Ref: Wikipedia
https://www.supremesolar.online/guarantee-terms/
Technical Specifications
ETC Solar Water Heaters Technical Specifications
ETC solar water heater technical specifications
Tubes Specifications |
Vacuum Tube outer diameter |
47mm/58mm |
Vacuum Tube inner diameter |
37 mm&47mm |
Tube Length |
1800 mm. |
Tank Specifications |
Tank Insulation |
PUF 50mm (Polyurethane foaming). |
Inner Tank Material |
Stainless Steel 304 L grade 0.5 mm. |
Outer Tank Material |
Galvanized Powder coated/Stainless steel. |
Inner tank Diameter |
380 mm. |
Outer tank Diameter |
480 mm |
Tank Volume |
100 liters to 500 liters. |
General Specifications |
Temperature |
65 degrees C to 85 degrees C |
Stand frame |
Galvanized Powder coated |
Method of Welding |
Seamless and Non welding Technology. |
Type of Fasteners |
Stainless Steel / galvanized |
Type of Grommets |
Silicon rubbers. |
Type of Circulation |
Thermosiphon. |
Electrical Back Up |
2 KW & 3kw (optional). |
Type of inlet feeding |
Using gravity feeding tank for non-pressure, low mixing of hot and cold water, and long life of the inner tank |
Total Space Required For Installation |
2*2.5m (W*L). |
Stand Dimensions |
1050*1150*2160mm (H*W*L) |
FPC Technical Specifications
Collector Specifications |
Section |
1.2 mm thick Aluminium |
Back sheet |
0.46 mm thick Aluminium |
Flat plate collector |
Ultrasonic welded with Nalsun coating |
Header pipe |
Copper 24 SWG |
Insulation |
Fiber Glass wool |
Collector size |
1030*2030*100mm |
Foil |
0.05 mm thick Aluminum |
Glazing |
1000 X 2000 X 4mm clear toughened glass for Regular size & 960x1660x4mm clear toughened glass for small size collectors |
Glass beeding |
E.P.D.M. Rubber |
Grommets |
E.P.D.M Rubber |
Flanges |
Brass |
Tank Specifications |
Inner tank material |
2mm H.R sheet with co2 welding inside coated with prime guard coating / 3mm for pressurized systems. |
Outer tank material |
Pre-coated laminated sheet (color: Half white) / Mirror finish |
Tank Insulation |
50 mm thick PUF |
Side dish |
2.5mm for Normal / 3.5mm for PRD |
Connecting Pipes |
Stainless steel |
Tank Volume |
100 liters to 500 liters. |
End Caps |
GI with PP coating |
General Specifications |
Temperature |
Maximum 700c |
Fasteners |
Stainless steel |
Type of Applications |
Pressurized/ Non-Pressurized |
Stand Dimensions |
1050*1150*2160mm (H*W*L) |
Total Space Required For Installation |
2*2.5m (W*L). |
Glass Lined Technical Specifications:
Tube Specifications |
Vacuum Tube outer diameter |
47mm/58mm |
Vacuum Tube inner diameter |
37 mm&47mm |
Tube length |
2100mm. |
Tube Weight |
30kg.(For 220 LPD) |
Tank Specifications |
Inner tank material |
Enamel steel of 2mm &2.5 mm with the glass lined coating |
Outer tank material |
Powder Coated/Stainless Steel. |
Tank Dimensions |
1480mm. |
Inner Tank Diameter |
210mm. |
Outer Tank Diameter |
550mm. |
Tank Weight |
54.9kg.(For 220 LPD) |
Tank Insulation |
50mm high-quality PUF materials. |
Tank Volume |
110,165,220,275 LPD |
Inner Dish |
2.5 mm |
Outer Dish |
Aluminium with powder coated |
General Specifications |
Temperature |
65 degrees C to 85 degrees C |
Total Space Required For Installation |
2*2.5m (W*L). |
Total System Weight |
105kg (Approx).(220 LPD) |
Stand Dimensions |
1050*1150*2160mm (H*W*L) |
Stand Weight |
21kg (For 220 LPD) |
Frame Angle |
27 degrees |
