Product Description

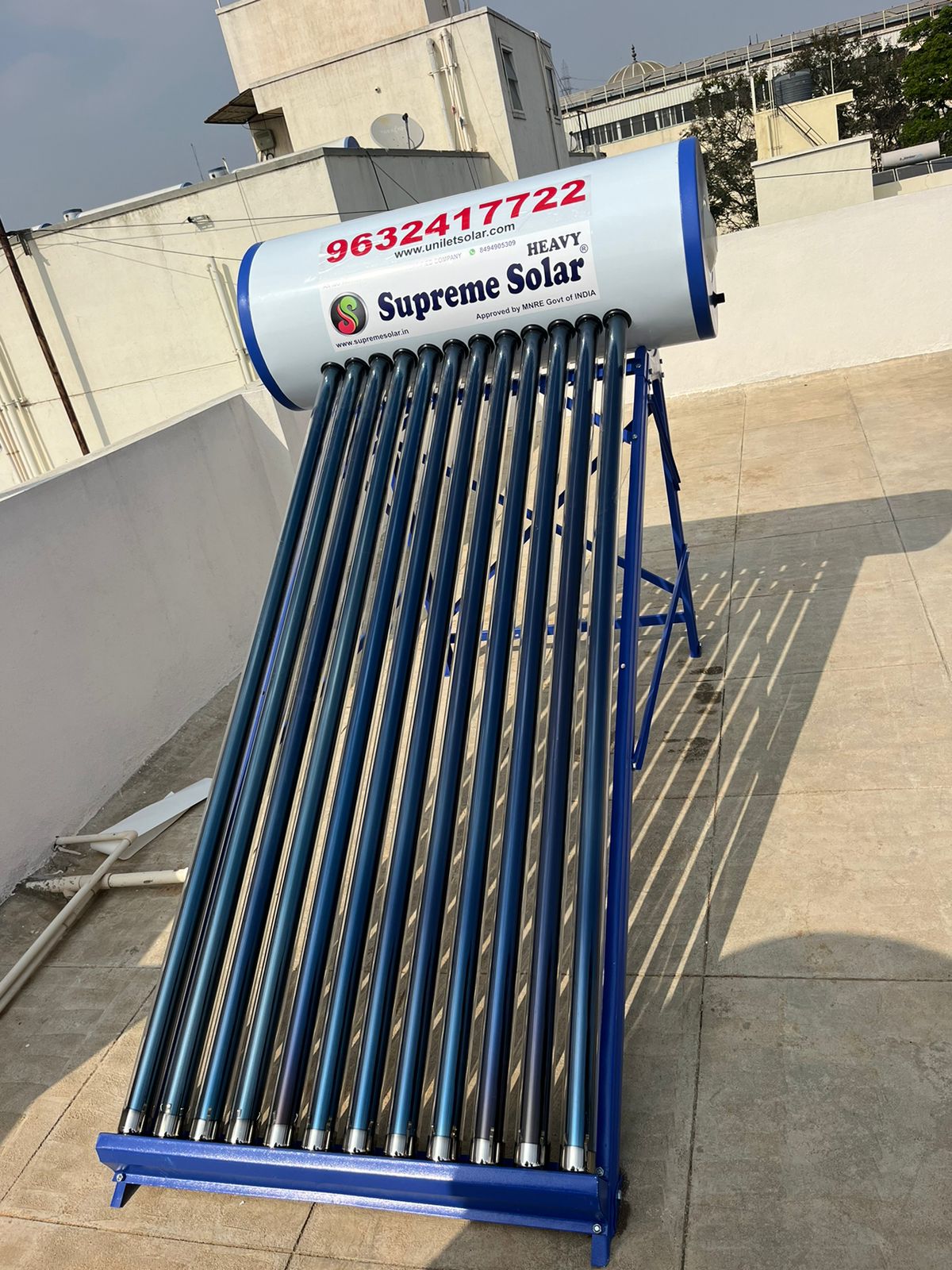

Supreme Solar 100 Ltr Water Heater, Water Heater comes with three-layered evacuated glass tubes (ETC) as a solar collector. In our Bangalore manufacturing unit, we produce a Solar tank with 2.5 Inch PUFF for high-quality insulation.
Supreme Solar 100 Ltr Water Heater are much reliable in hard water areas. Because of the Stainless steel inner tank which prevents rusting of tanks due to harsh hard water conditions. Hence Buying ETC solar is a vice decision.
Since The Inner tank of these models is of Stainless Steel SS304 Grade, hence Supreme Solar 100 LPD ETC life of the solar water is much higher than other
Hence Glass line solar water heaters are much reliable in harsh hard water areas. Because the Glass line is a special coating that prevents rusting of tanks due to harsh hard water conditions.
Supreme Solar models manufactured with high standard machinery and precision technology.
Supreme Solar
With Supreme Solar, it’s possible to contribute to making our environment pollution free and add to the green energy. Hence we are in the continuous process of upgrading our systems and machinery to international standards. To produce High-quality solar systems for your residential and commercial purposes.
Supreme solar 100 ltr price is the modest in the market and its available in mysore also.
100 LDP capacity. available in Powder Coated body or Stainless Steel for the solar tank.
Technical Specifications
ETC Solar Water Heaters Technical Specifications
ETC solar water heater technical specifications
Tubes Specifications |
Vacuum Tube outer diameter |
47mm/58mm |
Vacuum Tube inner diameter |
37 mm&47mm |
Tube Length |
1800 mm. |
Tank Specifications |
Tank Insulation |
PUF 50mm (Polyurethane foaming). |
Inner Tank Material |
Stainless Steel 304 L grade 0.5 mm. |
Outer Tank Material |
Galvanized Powder coated/Stainless steel. |
Inner tank Diameter |
380 mm. |
Outer tank Diameter |
480 mm |
Tank Volume |
100 liters to 500 liters. |
General Specifications |
Temperature |
65 degrees C to 85 degrees C |
Stand frame |
Galvanized Powder coated |
Method of Welding |
Seamless and Non welding Technology. |
Type of Fasteners |
Stainless Steel / galvanized |
Type of Grommets |
Silicon rubbers. |
Type of Circulation |
Thermosiphon. |
Electrical Back Up |
2 KW & 3kw (optional). |
Type of inlet feeding |
Using gravity feeding tank for non-pressure, low mixing of hot and cold water, and long life of the inner tank |
Total Space Required For Installation |
2*2.5m (W*L). |
Stand Dimensions |
1050*1150*2160mm (H*W*L) |
FPC Technical Specifications
Collector Specifications |
Section |
1.2 mm thick Aluminium |
Back sheet |
0.46 mm thick Aluminium |
Flat plate collector |
Ultrasonic welded with Nalsun coating |
Header pipe |
Copper 24 SWG |
Insulation |
Fiber Glass wool |
Collector size |
1030*2030*100mm |
Foil |
0.05 mm thick Aluminum |
Glazing |
1000 X 2000 X 4mm clear toughened glass for Regular size & 960x1660x4mm clear toughened glass for small size collectors |
Glass beeding |
E.P.D.M. Rubber |
Grommets |
E.P.D.M Rubber |
Flanges |
Brass |
Tank Specifications |
Inner tank material |
2mm H.R sheet with co2 welding inside coated with prime guard coating / 3mm for pressurized systems. |
Outer tank material |
Pre-coated laminated sheet (color: Half white) / Mirror finish |
Tank Insulation |
50 mm thick PUF |
Side dish |
2.5mm for Normal / 3.5mm for PRD |
Connecting Pipes |
Stainless steel |
Tank Volume |
100 liters to 500 liters. |
End Caps |
GI with PP coating |
General Specifications |
Temperature |
Maximum 700c |
Fasteners |
Stainless steel |
Type of Applications |
Pressurized/ Non-Pressurized |
Stand Dimensions |
1050*1150*2160mm (H*W*L) |
Total Space Required For Installation |
2*2.5m (W*L). |
Glass Lined Technical Specifications:
Tube Specifications |
Vacuum Tube outer diameter |
47mm/58mm |
Vacuum Tube inner diameter |
37 mm&47mm |
Tube length |
2100mm. |
Tube Weight |
30kg.(For 220 LPD) |
Tank Specifications |
Inner tank material |
Enamel steel of 2mm &2.5 mm with the glass lined coating |
Outer tank material |
Powder Coated/Stainless Steel. |
Tank Dimensions |
1480mm. |
Inner Tank Diameter |
210mm. |
Outer Tank Diameter |
550mm. |
Tank Weight |
54.9kg.(For 220 LPD) |
Tank Insulation |
50mm high-quality PUF materials. |
Tank Volume |
110,165,220,275 LPD |
Inner Dish |
2.5 mm |
Outer Dish |
Aluminium with powder coated |
General Specifications |
Temperature |
65 degrees C to 85 degrees C |
Total Space Required For Installation |
2*2.5m (W*L). |
Total System Weight |
105kg (Approx).(220 LPD) |
Stand Dimensions |
1050*1150*2160mm (H*W*L) |
Stand Weight |
21kg (For 220 LPD) |
Frame Angle |
27 degrees |
